Distillery Based Co2 Recovery Plant

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

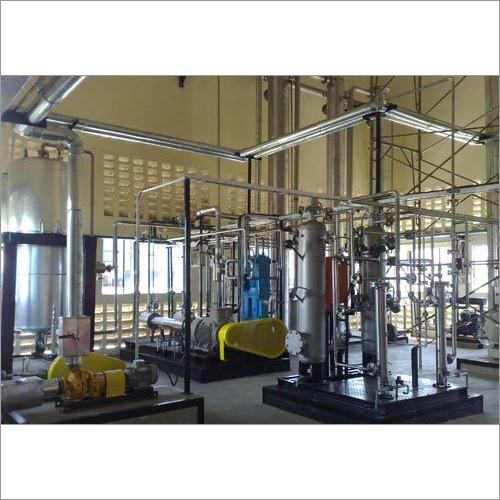

CO₂ Recovery Plant

Distillery Based CO₂ Recovery Plant is wide in demand in soft drinks companies, breweries and many more related sectors for supplying fresh water and boiler feed water. Manufactured in accordance with industry standards, these plants are available in different capacities as to meet client's exact requirements. These are primarily used for various industrial applications such as refrigeration units, gas dryers and cylinders filling system. The continuous process in this recovery plant meets the international food grade quality standards.

Features :

Fully automatic operation
Stainless steel construction
Water flow indicator for safety
Valves easily accessible for routine inspection & maintenance
Allow for auto switchover of towers and operation of hot air regeneration equipment
Touch screen operator interface
Data logging

Specification :

Ashirwad Carbonics (India) Private Limited, Ghaziabad (India)
Utility requirement for different capacities Co₂ Recovery Plant
Plant Capacity	Power		Make Up Water		Liquid Co₂ Storage Capacity	Cooling Water
Kg/Hr.	KW	HP	M3/Hr.	Gal/Min	In Metric Ton	M3/Hr	Gal/Min
100	33.5	44.9	0.4	1.76	15	7	30.8
250	83.7	112.3	1	4.4	25	17.5	77
500	167.5	22.1 6	2	8.8	50	30	132.1
750	251.2	336.9	5.9	13.2	100	45	198.2
1000	334.9	449.2	7.9	17.6	110	60	264.2
1500	502.4	673.8	6	26.5	150	90	396.3
2000	669.9	898.4	8	35.3	200	120	538.4
* Larger Capacities are available on request as per customer requirement.

Production Process :

Raw gas from fermenters is fed in to the system from where the gas is taken in foam trap where the foam is removed
With the help of booster blower, the gas is pushed in to the chain/series of scrubbing systems that comprises of pre water scrubber, Kmno4 scrubber with dosing facilities
In this chain of scrubbers, the CO₂ gas is washed properly using water
After this, the raw gas gets buffered in a vessel
From there, it moves towards two stage CO₂ compressor where the gas is compressed up to a desired pressure
Raw gas goes to the dual tower activated carbon filter for removal of odor
The raw gas is then enter into the high pressure precooler and from there to dual tower CO₂ dryer
It also passes through liquefaction system and nox removal tower
Finally, the liquid goes directly to the storage tank where the gas stores for a particular period of time
